Happy holidays! I have made some good progress. I will start from where I left off on my last post, and work my way up to where I am now.

The reason the outlines of the cisterns looked so strange last time was because I didn't realize how the vertices were laid out. In the file, they look like this (expect they are 70,000 lines long instead of 3):

v 0.5 1.5 2.5

vt 0.5 1.5

f 1 3 4

The v corresponds to a vertex, vt to a texture vertex, and f maps the vertices to each other. So in this case, vertices 1, 3, and 4 would form a triangle. Pretty cool! Well, before this I just thought it was a file of points that were supposed to be connected, which is why it came out funny. So, once I understood this, I went to work. I had a lot of problems getting it to display. WebGL is very picky and if you have one thing wrong it just doesn't do anything. There is no complier telling you you forgot a semi colon! My images came out like this:

That's not right! Well, Zoe helped me realize I had been scanning each x, y, z each separately as a point instead of mapping them together as a vertex. Instead of one array I now had an x[], y[], and z[]. Then I pushed them into the vertex positions array. Then I created a buffer and passed the vertices. And ta-da! It worked:

Top View

Side View

Water Texture

Bottom View

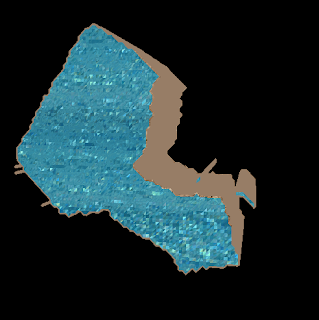

So, I have my first outline of the cistern. Nothing fancy yet, but it's a start. I decided my next task was to add water. This was difficult since I had a small bug that took me forever to find. It was hard for me to figure out how to have two different textures since I could only get one to display at a time. Eventually, I figured out how to get it to display. There was a lot of moving things around, changing the code, and especially looking at tutorials. One thing I realized is that order is very important, and once I got everything in the right order it worked. At first I struggled and it would only display one or the other:
